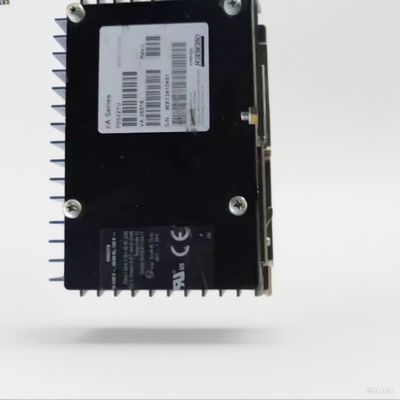

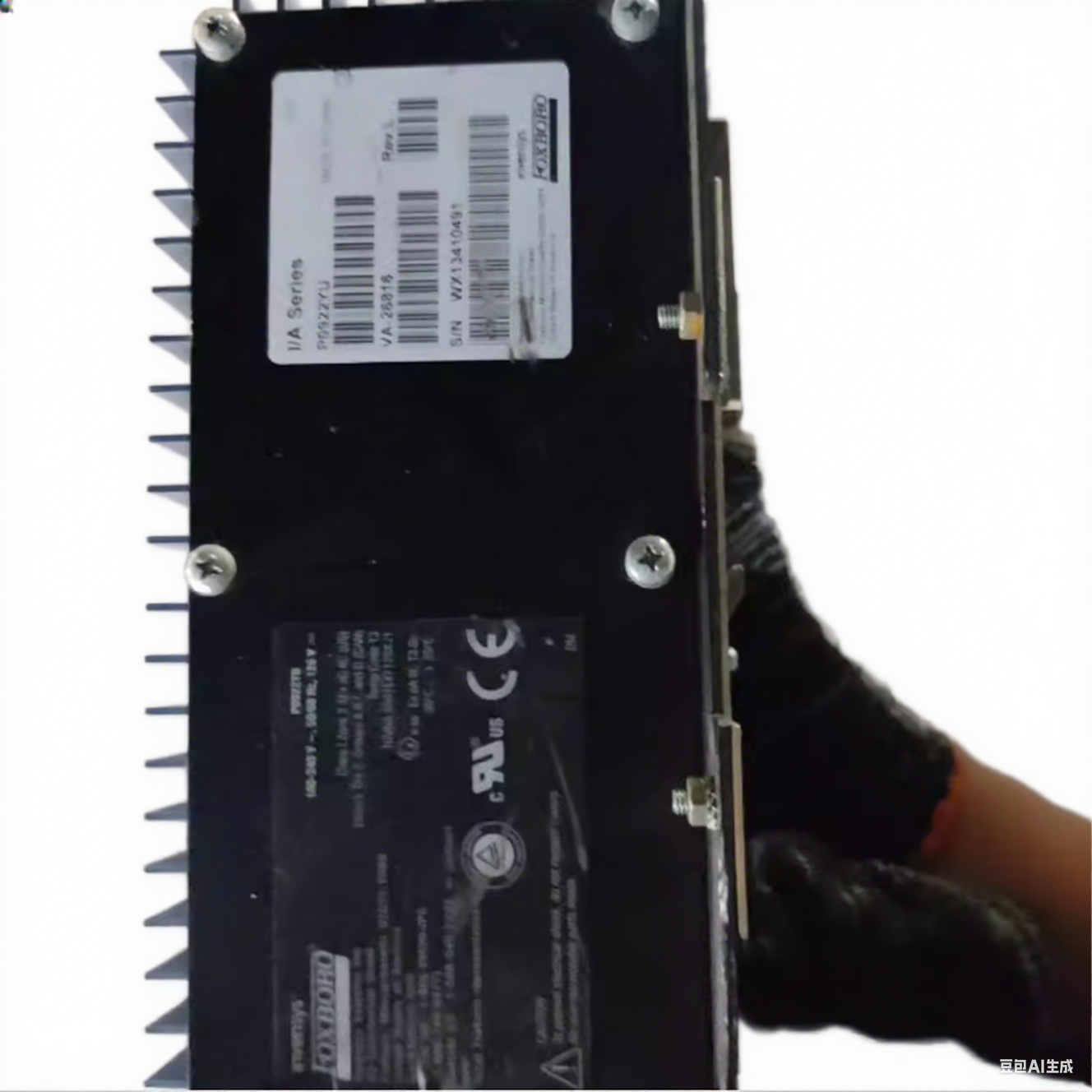

200 Series Baseplates Foxboro Parts P0922YU Foxboro Provide 24V DC To Standard

200 Series Baseplates Foxboro Parts P0922YU Foxboro Provide 24V DC To Standard

  • 200 Series Baseplates Foxboro Parts P0922YU Foxboro Provide 24V DC To Standard
  • 200 Series Baseplates Foxboro Parts P0922YU Foxboro Provide 24V DC To Standard
200 Series Baseplates Foxboro Parts P0922YU Foxboro Provide 24V DC To Standard
Product Details:
Place of Origin: USA
Brand Name: Foxboro
Certification: CO
Model Number: P0922YU
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: $10-3000
Packaging Details: original
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10 pieces one day
Contact Now
Detailed Product Description
Type: Module Shipping By: DHL/UPS/EMS/FEDEX/TNT Or Agent Etc
Lead Time: In Stock Product Type: Module
Payment: T/T Trading Term: EXW
Highlight:

200 Series Baseplates Foxboro Parts

,

24V DC Foxboro Parts

,

24V DC P0922YU Foxboro

P0922YU Foxboro Provide 24 V DC To Standard 200 Series Baseplates
The P0922YU (FBM207B) is an OEM Foxboro (Schneider Electric) 16-channel analog input module for I/A Series DCS. It accepts 0-20 mA or 4-20 mA signals, supports HART pass-through, and mounts on any 200-Series baseplate. Ideal for high-density process monitoring with ±0.1 % accuracy and hot-swap capability.
Key Features & Benefits
  • 100% OEM Foxboro--serialized & ESD-sealed
  • 16 isolated 0-20 mA / 4-20 mA inputs
  • 16-bit ADC, ±0.1% full-scale accuracy
  • HART 7 pass-through on each channel
  • 250 ms scan (configurable 50-500 ms)
  • Hot-swappable--no system shutdown
  • -40°C … +70°C operating range
  • CE, UL Listed, ATEX Zone 2, IECEx certified
Technical Specifications
Parameter Value
Model P0922YU (FBM207B)
Series I/A Series 200-Series
Channels 16 AI, isolated
Input Range 0-20 mA or 4-20 mA (DIP-selectable)
Resolution 16-bit, ±0.1% FS @ 25°C
Burden 250 Ω typical
HART Revision 7 pass-through
Scan Time 250 ms default (50-500 ms config.)
Isolation 500 VAC channel-to-bus
Power From 200-Series rack backplane
Operating Temp -40°C … +70°C
Humidity 5% … 95% RH non-condensing
Mounting Any 200-Series baseplate (horizontal/vertical)
Approvals CE, UL, ATEX Zone 2, IECEx
Typical Applications
  • Flow, level, pressure transmitters
  • Temperature loops (4-20 mA RTD/TC)
  • Valve position feedback
  • Compressor & turbine monitoring
  • API 670 compliant data acquisition
What's Included
  • 1* P0922YU (FBM207B) module
  • 1* Removable 40-pin spring-clamp terminal block
  • Factory calibration certificate
  • Quick-start guide & ESD wrist strap
Ordering Information
Foxboro Part Number: P0922YU
GTIN: 00855555509220
Warranty: 24-month advance-replacement warranty
Installation & Setup
  1. Plug module into any 200-Series baseplate slot.
  2. Connect 4-20 mA loops to spring-clamp terminals.
  3. Power up--green HEALTH LED < 5 s.
  4. Configure via I/A Series Station or FBM Configurator.
  5. Perform loop test & HART device polling.
